| Reference Number | 5664
|
| Vessel Type | Trawler
|
| Built By | Australian Shipbuilding Industries, Fremantle, Australia.
Rebuilt & lengthened in Whanganui 1988
|
| Year Built | 1971
|
| LOA | 27.1 m
|
| Length Reg | 25.49 m
|
| Beam | 6.2 m
|
| Draft | 3.5 m
|
| GRT | 113 T
|
| NRT | 69 T
|
| Construction | Steel
|

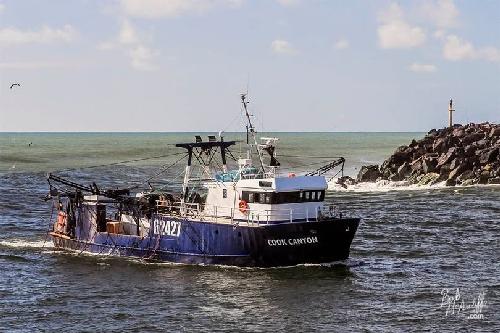

| General Description | FRESH FISH OFFSHORE STERN TRAWLER
|
| Engine Details | Cummins KTA 19-M3. 600hp. new 2019. 35,000 hours September 2026
Raw water cooling with heat exchanger
Keel cooling
|
| Auxiliary Engine | Caterpillar 3306DIT 350hp driving hydraulics
Cummins 4BTA (2015) 60kVA alternator
Keel cooling
|
| Gearbox | TwinDisc MG5170 5.95:1
|
| Propeller | 61.5" in nozzle
|
| Shaft Size | 114 mm
|
| Steering | Hydraulic
|
| Fuel Capacity | 19,000 litres in 4 tanks
|
| Water Capacity | 7,000 litres in 2 tanks
|
| Max Speed | 10 knots
|
| Service Speed | 3.5 knots
|
| Fuel Consumption | 60 LPH average everything running
|
| Engine Room | Aft
Fixed fire fighting - CO2
|
| Hold | 113 m3
|
| Hold Type | Chiller
|
| Hold/Fishroom | Chiller hold 0 deg C. concrete floor & insulated metal panels113m3, 1170 bins = 35 tonnes
|
| Freezer Plant | Compressor - Bitzer
Pipes
|
| Accommodation | 3 x 2 berth cabins - main deck
skippers cabin back of wheel house
Total 7 berths
|
| Galley | Bench with double sink
Electric stove
Fridge/freezer
Freezer
|
| Facilities | Table & seating for 10
Hot water - electric
Shower with hand basin
Toilet
|
| Winch Details | Trawl winches - Marine & General 2000m x 16mm per side
|
| Net Drum | 2 x hydraulic net rollers
|
| Gear | Bottom trawls x 4
Mid water trawls x 3
Trawl doors - Votex 1 set, Super V1 set
|
| Anchor | Hydraulic Windlass
2 x stockless anchors
Chain 70m
|
| Radio | SSB - Furuno 1552
VHF - Iniden UM380
VHF -
|
| Radar | Furuno - new 2025
|
| G.P.S. | Furuno
|
| Plotter | Seaplot
Piscatus
|
| Sounders | Furuno FCV 1150 - new 2024
|
| Net Monitor | Marport
Catch sensors x 2
|
| Other | Inmarsat C
EPIRB float free
Compass - Sestral periscope
Liferaft - 8 man
|
| Survey Class | MNZ Certificate of Survey
Fishing - Trawling & Trolling
NZ Offshore Limits
Date of expiry 30/10/2027
|
| Price | NZ$ 800,000.00
Plus GST and /or Taxes if any.
|
|
Plus GST and /or Taxes if any. All information is provided in good faith and is accurate to the best of our knowledge AT DATE OF LISTING. Buyers should verify information, by inspection, prior to purchase. We accept no responsibility for errors.
|
