Click on small images to enlarge
|
| Reference Number | 5663
|
| Vessel Type | Passenger Charter
|
| Designed By | Nic De Waal, Teknicraft Design
|
| Built By | Q West, Whanganui
|
| Year Built | 1998
|
| LOA | 13.5 m
|
| Beam | 3.78 m
|
| Draft | 0.6 m
|
| Construction | Aluminium
|
| Construction Details | Catamaran hull with hydrofoil between hulls
Dive platform
Original length 11.5m. Lengthened to 13.5m approx 2000
|

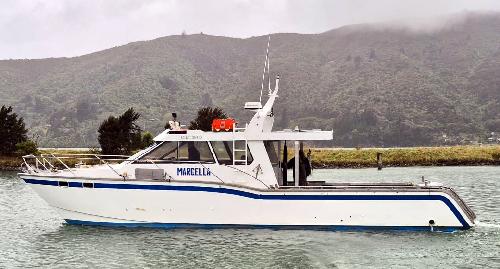

| General Description | TWIN JET CATAMARAN HULL PASSENGER & WORK BOAT - ENGINES & JET UNITS NEED SETTING UP PROPERLY.
For sale as, is where is
|
| Engine Details | 2x Caterpillar C9 576hp (starboard 378 hours & port 428 hours from new in 2018) = 1150hp
Wet exhausts
Re-powered 2018 (original engines Caterpillar 3126 420hp)
SPEED
Max light load 25 knots
Working 12 knots
|
| Electrical | 2 x solar panels on deck house roof
Shore power
|
| Propeller | 2 x Hamilton 291 jet units. Not matched to the new engines.
|
| Steering | Starboard helm station with bench seat in deck house
Second deck helm station starboard aft bulkhead of house
|
| Fuel Capacity | 2,000 litres in 3 tanks (when new)
|
| Water Capacity | Fresh Water - 400 litres in 2 tanks (when new)
Black water - 100 litres
|
| Max Speed | 25 knots
|
| Service Speed | 12 knots
|
| Accommodation | 2 berths in spacious cabin forward.
1 berth starboard side of saloon
|
| Galley | Formica bench with SS sink
Broadwater 4 burner gas stove with oven.
Fridge
|
| Facilities | L shaped saloon table & seating (converts to additional bed.)
Hot water Millen gas califont
Shower, hand basin & macerator toilet compartment.
100 litres black water tank
|
| Anchor | Capstan
2 x plough anchors and chain to survey
|
| Radio | VHF - Uniden UM355
|
| Radar | Raymarine plotter sounder radar
|
| Plotter | Raymarine plotter sounder radar
|
| Sounders | Raymarine plotter sounder radar
|
| Auto Pilot | Raymarine P70RS
|
| Other | Compass - Silva
Majestic DVD player
Sony MP3 player
Electric windscreen wipers
Brass clock & barometer
EPIRB
10 man rigid life raft
|
| Survey Class | MNZ Certificate of survey
Aquaculture, Passenger Charters & Private use
Non- Passenger & Passenger - Inshore - max 12 persons
Survey completed 19/03/2026
Renewal survey due 05/07/2031
|
| Vessels History | Built Q'West LOA 11.5m
Approx 2000 - Lengthened by Grant Stephens Marine, Masterton to 13.5m
New engines fitted 2018. Jet units were never set up for these engines. This needs doing. Original engines were Caterpillar 3126 of 420hp
2021 converted to aquaculture support vessel.
September 2026 aquaculture equipment removed.
|
| General | FOR SALE AS IS, WHERE IS.
|
| Price | NZ$ 190,000.00
Plus GST and /or Taxes if any.
|
|
