| Reference Number | 5617
|
| Vessel Type | Trawler
|
| Built By | Ocean Shipyards, Freemantle, WA
|
| Year Built | 1987
|
| LOA | 24.86 m
|
| Length Reg | 22.94 m
|
| Beam | 6.74 m
|
| Draft | 3.2 m
|
| GRT | 133 T
|
| NRT | 39 T
|
| Construction | Steel
|
| General Description | REFRIGERATED PRAWN TRAWLER
|
| Engine | Mitsubishi
|
| Engine Details | SSB Mitsubishi 450 kW, turbocharged diesel
|
| Horsepower | 450 kW
|
| Auxiliary Engine | Caterpillar 190 hp, driving 180 kVA alternator
|
| Gearbox | Twin Disc hydraulic reverse/reduction gearbox with oil-lubricated shaft
|
| Fuel Capacity | 63,980 L
|
| Water Capacity | 9,132 L
|
| Max Speed | 10.5 knots
|
| Service Speed | 4 knots
|
| Fuel Consumption | 2,400 Litres per day, steaming and trawling.
|
| Hold | 25 T
|
| Hold Type | Freezer
|
| Hold/Fishroom | Freezer Hold: 25 t (approx. 2,300 cartons)
Snap Freezer: 2.5 t with 9-shelf forward unit
Brine Tank: 1,920 kg
|
| Accommodation | Total Berths: 7 bunks across 4 cabins, suitable for crew of 7-8.
Wheelhouse
Skipper Cabin: Day bed on aft starboard side of wheelhouse;
Private cabin in aft starboard corner with ¾ sized skippers bed
Companionway: Leads down to main deck alleyway connecting to galley/saloon
Main Deck Accommodation
Port Forward Cabin: 2 × single bunks; full-height stowage locker; access to Saloon/bathroom
Starboard Forward Cabin: 2 × single bunks; full-height stowage locker; access to lobby/bathroom
Starboard Aft Cabin (Engineer): Upper & lower bunk; full-length stowage locker; access to alleyway
Wheelhouse and accommodation areas insulated and lined; decks carpeted. Efficient layout providing privacy and comfort for crew during extended fishing operations.
|
| Facilities | Bathroom: Separate toilet and shower; wash basin with vanity
Laundry: Simpson 7 kg front-loading washing machine; Westinghouse 4.5 kg dryer
|
| Gear | Port & starboard trawl winches - 5 t capacity
Cod end winches - 3 t capacity
Hydraulic try winch and electric working capstans
Complete mooring equipment and deck fittings for commercial trawling
|
| Anchor | Twin anchors with hydraulic windlass and twin warping drums
|
| Radio | VHF radios, HF SSB, satellite phone, EPIRB
|
| Radar | Furuno Model FR7112
|
| G.P.S. | Furuno GPS
|
| Sounders | Furuno Colour LCD Depth Sounder Type FCV-1200L.
28 & 200 kHz.
|
| Auto Pilot | Furuno Model FAP-7001
|
| Other | Onboard navigation computers with TMQ C-Plot system
Admiralty charts covering waters from Perth to Cape York
|

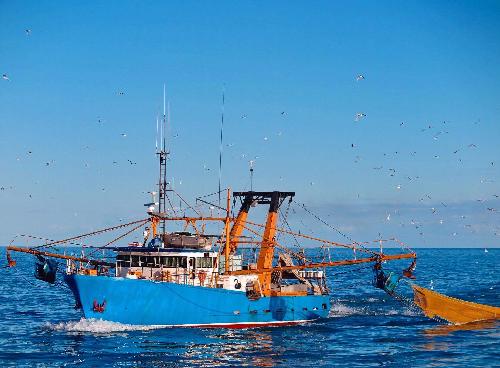

| General | 24.86 m double-rigged, single-screw steel refrigerated prawn trawler built in 1987 at Ocean Shipyards, Fremantle, WA. Designed for efficiency and reliability, this vessel is fully equipped for commercial prawn operations and has been successfully operating in the Australian Northern Prawn Fishery since she was launched 1987. The vessel is also equipped with deep sea winches to allow access to the NWS Scampi Fishery during the NPF closures.
Robust and reliable commercial trawler, well-maintained
Ready for immediate operation in Northern Prawn Fishery waters
High-capacity refrigerated holds for long trips
This vessel represents a proven and fully equipped platform for commercial prawn operations.
|
| Price | NZ$ 550,000.00
Plus GST and /or Taxes if any.
|
|
Plus GST and /or Taxes if any. All information is provided in good faith and is accurate to the best of our knowledge AT DATE OF LISTING. Buyers should verify information, by inspection, prior to purchase. We accept no responsibility for errors.
|
