| Reference Number | 5561
|
| Vessel Type | Passenger, Work Boat
|
| Built By | Nautilus Marine Ltd, NZ
|
| Year Built | 1978
|
| LOA | 23 m
|
| Beam | 9.7 m
|
| Draft | 2.9 m
|
| Construction | Steel
|
| Construction Details | Steel Catamaran
Displacement 125 tonnes
Refitted 2008
Moon pool
|

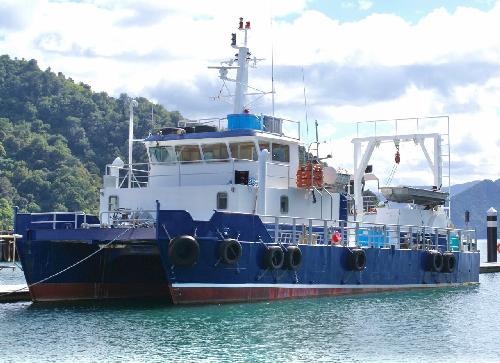

| General Description | GENERAL PURPOSE WORK, DIVE & PASSENGER CATAMARAN. ALL REASONABLE OFFERS CONSIDERED.
|
| Engine Details | 2 x Scania DI12 - 260kW x 2 = 520kW
Approx 25,000 - 28,000 hours
Kobelt pneumatic engine controls
|
| Horsepower | 700 hp
|
| Auxiliary Engine | Hydraulic power pack - Hyundai Seasall H380
3,575 hours
|
| Electrical | Genset #1 - Yanmar/Mase 2000TB - 17.4kVA - 3,341 hours
Genset #2 - Isuzu Zenith M6605.3 60kVA - 40 hours
|
| Gearbox | 2 x TwinDisc CB MGS0955C
|
| Propeller | 2 x 4 blade 40" x 31" RH
|
| Shaft Size | 3 inches
|
| Steering | Hydraulic / Electric toggle
|
| Thruster | Hydraulic bow thruster in port hull.
|
| Fuel Capacity | 20,000 litres in 7 tanks
|
| Water Capacity | Fresh water 13,000 litres in 3 tanks
Black water 3,000 litres
|
| Max Speed | 9 knots
|
| Service Speed | 7.5 knots
|
| Fuel Consumption | Estimated fuel burn per hour at cruising speed 100 l/h
|
| Accommodation | Roomy accommodation area with total 15 berths in 7 cabins.
5 x 2 berth cabins
1 x single berth cabin
1 x 4 berth cabin
|
| Galley | Large galley and mess.
Electric cook top - 8 burners
Oven
Microwave
Fridge
Freezer - chest
|
| Facilities | hot water
2 x toilets
2 x showers
Stereo
TV
2 x BBQ
Laundry
|
| Cargo Winch | HIAB X - Hi Duo 258 crane
10-ton deck winch,
10-ton aft gantry and winch combination suitable for hauling heavy equipment or deploying and retrieving ROVs.
|
| Anchor | Hydraulic winch
Currently missing anchor and chain.
|
| Radio | ICOM IC-M200
|
| Radar | Yes
|
| G.P.S. | Koden K6P-193 Mk2
|
| Plotter | Furuno TImeZero Touch screen
|
| Sounders | Koden CVS-118
|
| Auto Pilot | Yes
|
| Other | Compass
Spotlight
3x life rafts
1x 406 EPIRB manual
Scale 1 medical stores & fi rst aid kit
Flares x 6 (4 parachute) exp 06/26
Fixed Fire fi ghting equipment: ERCO system 3x 33kg CO2 tanks
3x 10-man danbuoys, 4x life rings, 2x ropes, 1 light
22x 150n with lights
Bilge System &150; Automatic operation
Tender - 3.8-meter punt with 15hp outboard
|
| Survey Class | MNZ Certificate of Survey
Currently in-shore survey for 22 pax
Pursued off-shore survey and only needed life rafts in tests and SSB radio
|
| Vessels History | It is a well proven multi-purpose vessel that has an extensive history in the dive and salvage, oil and gas and aquaculture industries throughout NZ and around the Pacific.
|
| General | All reasonable offers considered.
|
| SPECIAL | NEGOTIABLE
|
| Price | NZ$ 800,000.00
Plus GST and /or Taxes if any.
|
|
