| Reference Number | 5511
|

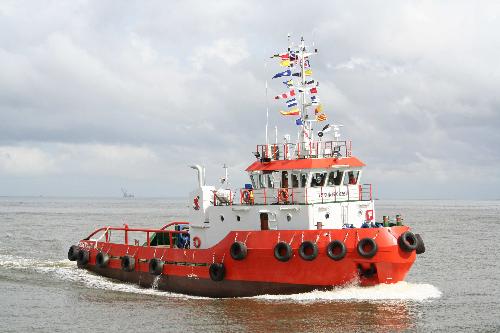

| Vessel Type | Tug
|
| Built By | Malaysia
|
| Year Built | 2005
|
| LOA | 30 m
|
| Beam | 8.6 m
|
| Draft | 3.5 m
|
| GRT | 254 T
|
| NRT | 76 T
|
| Construction | Steel
|
| Construction Details | Deck area 40 m2
|
| General Description | TUG GENERAL PURPOSE TOWING & PUSHING BP25 TONNES
|
| Engine Details | 2 x Caterpillar 3508, 1,000hp
|
| Horsepower | 2,000 hp
|
| Electrical | 2 x Cummins 6BT5.9DM 80kW
|
| Gearbox | 2 x Twin Disc MG5301
|
| Bollard Pull | 26 tonnes tested March 2012
|
| Fuel Capacity | 240.23 m3
|
| Water Capacity | 65.38 m3
|
| Max Speed | 12 knots
|
| Fuel Consumption | Endurance 30 days
|
| Accommodation | Fully air-conditioned
Complement 12 men
|
| Winch Details | Towing Winch Brake holding of 70t, drum size for 38mm x 700m wire
Capstan 1 x 3 tonnes
|
| Anchor | 2 x 570 kg Halls type & 10 length of 22mm x Grade U2 stud link
chain, swivel piece and chain stopper
Hydraulic windlass
|
| Other | LIFE SAVING AND FIRE FIGHTING EQUIPMENT
In compliance with CLASS and requirement of Flag government
CO2 Flood System
LSA for 20 men
|
| Survey Class | BV Unrestricted - not current. Owners have plan to reactivate Class.
|
|
Plus GST and /or Taxes if any. All information is provided in good faith and is accurate to the best of our knowledge AT DATE OF LISTING. Buyers should verify information, by inspection, prior to purchase. We accept no responsibility for errors.
|
