Reference Number5499
Vessel TypeBarge & Landing Craft
Designed ByChris Williams, Australia
Built ByF C Management, Bridport, Tasmania
Year Built1990
LOA24 m
Beam9.05 m
Draft1.697 m
ConstructionSteel
Construction DetailsDisplacement 2310 tonnes
Plate 6 mm
Load capacity 100 tonnes

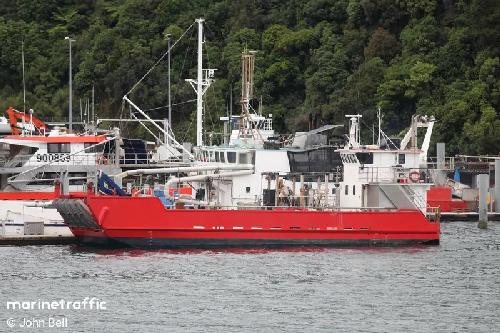

General DescriptionRO-RO SELF PROPELLED BARGE 100 TONNES LOAD CAPACITY
Engine Details2 x Caterpillar 3106. 190kW x 2 = 380kw
Electrical100kVA genset
Shore power
Extensive rewiring 2018/2019
GearboxTwin Disc 509
Propeller2 x 3 blade 800mm x 750mm
Steeringelectric/hydraulic
Fuel Capacity2800 litres in 2 tanks
Water Capacity1400 litres in 2 tanks
Max Speed9.5 knots
Service Speed8 knots
Fuel Consumption60 lph 8 knots
Accommodation3 x double berths
1 x single berth
4 cabins
GalleyFully equipped
Fridge
Freezer
Oven
Air fryer
Crockpot
FacilitiesToilet/shower
Hot water
Cargo WinchHiab
AnchorHydraulic capstan
2 x anchors
Chain & warp
RadioVHF
RadarYes
G.P.S.Yes
PlotterYes
SoundersYes
Auto PilotYes
OtherEPIRB
Survey ClassMNZ Date of Expiry 18/08/2022
Inshore limits Nelson Marlborough
Vessels HistoryPreviously worked in Tasmania
PriceNZ$ 1,400,000.00 Plus GST and /or Taxes if any.

Plus GST and /or Taxes if any. All information is provided in good faith and is accurate to the best of our knowledge AT DATE OF LISTING. Buyers should verify information, by inspection, prior to purchase. We accept no responsibility for errors.
