Reference Number5177
Vessel TypeTug
Designed ByRobert Allan Ltd
Built ByTurkey
Year Built2018
LOA23 m
Beam10.9 m
Draft4.8 m
GRT289 T
NRT87 T
ConstructionSteel

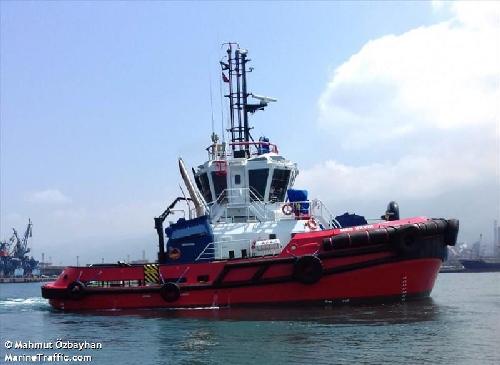

General DescriptionASD TUG - 50t BOLLARD PULL - TOWING, PUSHING, MOORING, FIRE FIGHTING
Engine Details2 x CAT 3512C 2 x 1.380 bKw at 1.600 rpm
Horsepower2,760 kW
Bollard Pull50
Service Speed12 knots
OtherTANK CAPACITIES
Fuel oil 62.00 m3
Fresh water 11.40 m3
Sewage 10.30 m3
Oily water 3.20 m3
Lubrication oil 1.80 m3
Foam 3.20 m3
Fresh water ballast 21.80 m3

DECK EQUIPMENT
ANCHORS & CHAIN 1x 240kg (High Holding Power)Short link chain 19 mm Gr 2
FORE TOWING WINCH One (1) piece SEC TEN HORN electric frequency controlled towing winch one (split) towing drum and one warping head. Type : EFTW &150; 300 kN
ANCHOR CAPSTAN One (1) piece SEC TEN HORN electric anchor capstan(s), to suit a 20,5* mm stud link chain with quality U2. Type : EACV &150; 20,5 U2
CAPSTAN One (1) piece SEC TEN HORN electric capstan(s). Type : ECV &150; 50 kN
TOWING HOOK DATA Quick Release Disc Type Towing Hook, type DTH 70-130P
RESCUE BOAT BRIG 420 CM Foldable Boat
FENDERS Rubber, Cylinder, W and D type fendering around the hull
LIFE RAFT 2x on top deck, 10 persons

AUXILIARY EQUIPMENT
GENERATOR SET 2 x C4.4 86 ekW 1500 rpm 50hz
FRESH WATER SYSTEM Electrical hydrophore and sewage pump
AIRCONDITIONING HEINEN HOPMAN: Serving Accommodation Cabins Central air handling unit for single duct system Cap. 2.100 m3/h.Gree Split type air conditioning unit (as spare capacity for boost cooling) Cap. 24000 btu/h Type Cassette Type
VENTILATION MECHANICAL VENTILATION EXHAUST: 2 x 100 m3/h, 1 x 470 m3/h centrifugal direct driven fan
MECHANICAL VENTILATION SUPPLY: 2 x SALOR HUA-S 630-10-2 (reversible,2-speed). Cap. 2 x 28.000 / 14.000 m3/hr. Axial HUA-S 250-10-2, 1 x 1000 m3/h centrifugal direct driven fan complete with flexibles and clamping rings.
EXTERNAL FIRE FIGHTING (FIFI E)
JASON SUPPLY 1 x Main fire pump: driven through clutched flexible coupling on front of one main engine
Total Capacity: 1,400 m3/hour
2 x Monitors
FFS foam/water monitors
Remote operated, electric controls

ACCOMMODATION
MLC-compliant high-quality and great-comfort accommodation is climate-controlled and includes a captain&146;s cabin, an officer cabin and two double crew cabina.

NAUTICAL AND COMMUNICATION EQUIPMENT
JRC - COMPLYING GMDSS A3 AREA
SEARCHLIGHT 2 x 24 V, 1000 W
RADAR JMA-5212-6BB
INMARSAT SSAS JRC JUE 87
GPS NAVIGATOR JLR-7500
RADIO SYSTEM JRC GMDSS A1+A2+A3
SPEED LOG JLN-205 MK2
BNWAS NAVITRON NT991 BNWAS
AIS CLAS A JHS 183
AIS CLAS B IMARINE3.5
SART, EPIRB JOTRON 85037/ 83310
WIND SYSTEM CLIPPER
AUTOPILOT NT921MKII
NAVTEX NCR 333
COMPASS REFLECTA 1 - 1200MM
Survey ClassRINA C HULL + MACH + AUT-UMS,Firefighting Ship E with Water Spray, Unrestricted Navigation, Greenstar 3, MLC Design

Plus GST and /or Taxes if any. All information is provided in good faith and is accurate to the best of our knowledge AT DATE OF LISTING. Buyers should verify information, by inspection, prior to purchase. We accept no responsibility for errors.
