| Reference Number | 4210
|
| Vessel Type | Tug
|
| Built By | Turkey
|
| Year Built | 2011
|
| LOA | 29.5 m
|
| Beam | 9.3 m
|
| Draft | 2.45 m
|
| GRT | 222 T
|
| NRT | 67 T
|
| Construction | Steel
|
| Construction Details | Deck Cargo : 155 tons
Deck Strength : 2.2 tons / sqm
Deck Area : 110 m2
Wood covered deck
|
| General Description | NEW BUILD MULTI PURPOSE SUPPLY / UTILITY / WORK / DIVE BOAT.
|
| Engine Details | 2 x 1000 BHP Cummins KTA 38M1 1800 rpm
|
| Horsepower | 2,000 hp
|
| Auxiliary Engine | 2 x Cummins 6 CTA 156 kVA each
|
| Electrical | Newage Stamford ( 380 / 220 V- 50hz )
|
| Gearbox | 2 x MASSON / REINTJES or equal
Reverse Reduction gearbox
|
| Propeller | 2 x 4 bladed Fixed Pitch Propellers
|
| Steering | 2 set Hydraulic Cylinders driven by electric motor
hydraulic power back
|
| Bow Thruster | 100 BHP Electric Driven Bow Thruster
75 Kw - 100 hp at 1500 rpm
|
| Fuel Capacity | Fuel oil 90,000 litres
Lube oil 1,000 litres
|
| Water Capacity | Fresh water 25,000 litres
Sewerage 4,500 litres
|
| Max Speed | 13 knots
|
| Fuel Consumption | Max.Fuel.Consump. : 150 lt/hr each engine
Economical Speed : 11 knots
Econ.Fuel.Consump. : 90 lt/hr each engine
Range : appr 20 days
|
| Engine Room | CO² Gas fixed fire-smothering for engine room
1 x fire pump 7.5 kw 2900 rpm
Fuel Separator 760 lt/hr ( Alfa Laval )
|
| Accommodation | Total 16 men
Upper deck :
3 x Cabin 2 berths ( ttl 6 men )
2 x Cabin single berth ( ttl 2 men )
1 x Mess / Dining room
Main deck :
2 x Cabin 2 berths ( ttl 4 men )
1 x Cabin 4 berths ( ttl 4 men )
1 x Mess / Dining room
1 x Galley
|
| Facilities | Fully Air-condition - Chiller System
Provision Cold Store 10 cbm ( minus 5 degree )
|
| Winch Details | 1 x 10 tons Double Drum hydraulic Winch
30mm 800 mt ( ttl steel wire capacity )
|
| Gear | 1 x 20 tons Hydraulic Knuckle Boom Deck Crane Max 16 mt outreach
10 tons Hydraulic A-Frame 3 mt outreach from stern
Stern roller
Mooring Capstan : 2 x Hydraulic and 2 x Electric driven
TRANSFER PUMPS
Fuel Oil (Cargo) : D.O. overboard pump - 5.5 kW - 40 m3/h
Fresh Water (Cargo) : FW overboard pump - 5.5 kW - 30 m3/h
|
| Anchor | 1 x Electrical driven 22mm Chain 570 kg Anchor
|
| Other | Electronics & navigation equipment to suit
2 x 10 person Life-raft in rigid container
20 x Life jackets retro-reflective type
3.60 mt Inflatable boat with 15 bhp outboard motor
Forward and Aft Bridge Control (Bridge / Maneuvering Stations)
Deck Electrical Socket ( Weatherproof )
|
| Survey Class | RINA C+HULL + MACH, SUPPLY VESSEL,COASTAL
|
| General | Estimated price Euro 2,400,000. subject to details
Delivery : 9 ( nine ) months upon contract signed and first installment received

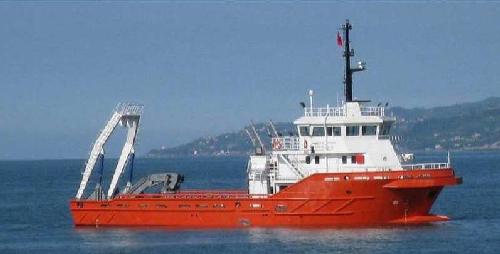

PHOTOS ARE RECENT NEW BUILD SISTER SHIP
|
| Price | 2,400,000 EUR
Plus GST and /or Taxes if any.
|
|
