| Reference Number | 4184
|
| Vessel Type | Barge & Landing Craft
|
| Built By | Indonesia
|
| Year Built | 2008
|
| LOA | 49 m
|
| Beam | 10.1 m
|
| Draft | 2.4 m
|
| GRT | 450 T
|
| NRT | 150 T
|
| Construction | Steel
|

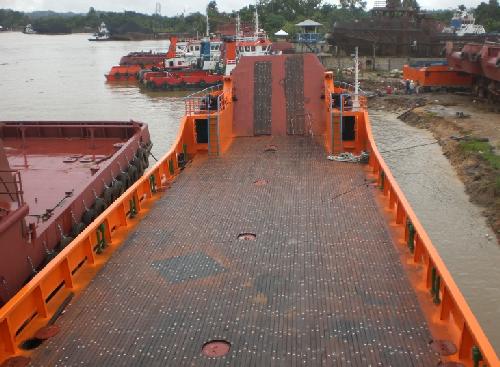

| General Description | LANDING CRAFT TANK - DECK 311 m2(9.60x32.40 Meter)
|
| Engine Details | 2 x 650 HP/i 900 Rpm, Yanmar marine diesel engine 6AYM-STE
|
| Horsepower | 1,300 hp
|
| Auxiliary Engine | 2 x 75 KVA/t50fl Rpm, Volvo Penta D5A-T
|
| Gearbox | 2 x Hangzhou fada marine reduction gear Y JD600/rr. 1: 4,18
|
| Propeller | 2 x Manganese bronze Dia. 1,40 Meter,4 Blade Fix Pitch Propeller (FPP)/B-Series
|
| Shaft Size | 5 inches
|
| Fuel Capacity | 45,000 litres
|
| Water Capacity | 38,000 litres
|
| Max Speed | 13 knots
|
| Engine Room | PUMP INSTALLATION
Bilge and Ballast Pump - Ebara 65x50 FSJ (Horizontal centrifugal pump), 24 Meter/Capacity 0,4 M3/min
General Service and Fire Hydrant Pump - Torishima pump FTA-N 125x100-2501 (Horizontal centrifugal pump), Capacity 120 M3/h
Fresh Water Pump - Ebara AGA 1.5 (Transfer pump), Head 35 Meter! Capacity 80 Liter/mm or equivalent
Fuel Oil Transfer Pump - Ebara GL 25-5 (Gear pump),Pressure 5 Kgf/cm2, Capacity 55/46 liter/min
Emergency FO Transfer Pump - KS-25
Oil Water Separator (OWS) - Huanshui CYF- 0,5/ Capacity 0,5 M3/h
HYDRAULIC & ELECTRICAL INSTALLATION
All cable lighting & power generator installation use marine cable with cable try galvanize material
1 Set Navigation lighting
1 Set Emergency lighting with power DC 24 Volt
1 Set General alarm system
2 System steering control operation, manual hydraulic and electric hydraulic system
Synchroniises generator installation
|
| Accommodation | 10 Persons Crew
2 Unit Air Conditioner 1&152;1 ,5 PK
Interior setting installation at wheelhouse, accommodation,crew cabin use wooden material
|
| Other | NAVIGATION & COMMUNICATION EQUIPMENT
1 Unit VHF Marine Transceiver ICOM type lC-M304
1 Unit GPS Navigator FURUNO type GP-32
1 Unit Marine Radar FURUNO type M-1715 (24NM)
1 Unit Echo Sounder and Transducer FURUNO type FCV-667
1 Unit SSB HF All Band Transceiver Radio ICOM type
M-710 with Tuner ICOM type AT-140
1 Unit Navtex Receiver SAMYUNG type SNX-300
2 Unit Handy Talky ICOM
1 Unit Table Magnetic Compass Dia. 6&148;
TOWING. MOORING & HARBOUR EQUIPMENT
2 xAnchor winch include ram door with electric motor 7,5 HP/ 1420 Rpm
2 x Anchor weight 300 Kg
9 Shackles Anchor chain 5/8&148;
60 Meter Poly propylene rope Cir-6/ 2&148;
1 Roll Nylon Rope 6 mm
|
| Survey Class | RINA - Unrestricted Navigation
|
| General | Free deck Space 311 m2(09,60x32,40 Meter)
|
| Price | US$ 1,900,000.00
Plus GST and /or Taxes if any.
|
|
Plus GST and /or Taxes if any. All information is provided in good faith and is accurate to the best of our knowledge AT DATE OF LISTING. Buyers should verify information, by inspection, prior to purchase. We accept no responsibility for errors.
|
