Maritime International

Click on small images to enlarge

Reference Number

4152

Vessel Type

Barge & Landing Craft

Built By

Yii Brothers Shipbuilding Contractor Co

Year Built

1994

LOA

40.59 m

Length Reg

35.59 m

Beam

9.75 m

Draft

2.09 m

GRT

279 T

NRT

84 T

Construction

Steel

General Description

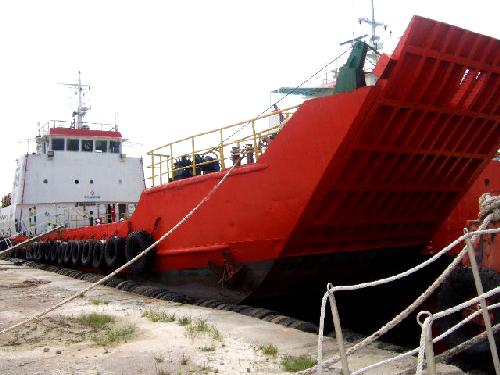

200 TONNES CARGO SELF PROPELLED BARGE IN CLASS. SPECIFIED FOR THE OIL INDUSTRY

Engine Details

2 x Cummins KTA19-M2
2 x 580hp @ 1800rpm

Horsepower

1,160 hp

Electrical

Generators
2 x Cummins 6BT5.9-G2 124kw @ 1800rpm
emergency 1 x 10kW Denyo

Propeller

2 x 4 blade Kaplan type

Steering

Hand - hydraulic c/w
Emergency system

Thruster

1.5 tonnes thrust

Fuel Capacity

Fuel oil 194m3 (160 tonnes)

Water Capacity

Fresh water 280m3 (280 tonnes)

Service Speed

10 knots

Accommodation

2 x 1 berth cabins
1 x 2 berth cabin
4 x 4 berth cabins
20 berths total

Facilities

Air conditioning

Anchor

2 x bow winches
2 x 660kg Stockless bow anchors
Chain 192.5m x 19mm

Other

NAVIGATIONAL & COMMUNICATION EQUIPMENT
As per SOLAS
Radar
Magnetic compass
GPS Navigator
Echo sounder
EPIRB
SSB radio
VHF radio

DECK MACHINERY
1 x 30m3/hr cargo delivery pump

Survey Class

Nippon Kaiji Kyokai (NK)
Flag Malaysia

General

CAPACITIES
Clear deck space - 165m2
Deck Cargo - 200 tonnes
Deck Strength - 5 T/m2
Ramp width - 5.5m
Ramp Length - 4.27m

FIRE FIGHTING
Internal fire fighting - SOLAS
Fixed CO2 flooding system
Heat & smoke detection
External Fire Fighting
Fire pump 31m3/hr @ 50m head

LIFE SAVING - SOLAS
2 x 25 man life rafts
8 x life buoys
25 x life jackets

Price

US$ 1,300,000.00 Plus GST and /or Taxes if any.

Plus GST and /or Taxes if any. All information is provided in good faith and is accurate to the best of our knowledge AT DATE OF LISTING. Buyers should verify information, by inspection, prior to purchase. We accept no responsibility for errors.
