| Reference Number | 4134
|

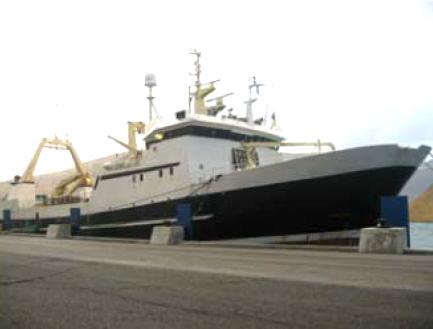

| Vessel Type | Trawler
|
| Built By | Norway
|
| Year Built | 1985
|
| LOA | 59 m
|
| Length Reg | 51.75 m
|
| Beam | 13 m
|
| GRT | 1,704 T
|
| NRT | 526 T
|
| Construction | Steel
|
| Construction Details | The hull is equipped with 20-30 mm steel plates in ice belt.
Webb frames on every 4 frames
Ice gallows
1998: New Aux. Engine
1998: 4 x new Sweep Line Winches
1998: Factory renewed by Carnitech
2000: Bulbous Bow fitted
2000: third Trawl Winch fitted for fishing with 2 Trawls
05/2007 the Factory was rebuilt for H/G Cod processing, Freezer Tunnels removed. Vertical Plate Freezers installed
|
| General Description | FREEZER STERN TRAWLER HOLD 1,100m3 -30DegC
|
| Engine Details | B & W Alpha Diesel 9L28/32 2,700 BHP @ 775 rpm
1 x Hytek gear 2 step
|
| Auxiliary Engine | 1 x Mitsubishi 1248 kW (1998). Renovated/class 6/2006
1 x 550 HP Deutz - as Harbour Generator
|
| Electrical | GENERATORS:
1 x Stamford 1500 kVA Generator coupled to Main Aux. Engine
1 x Stamford 460 kVA MSC 534E
1 x 1248 kW
|
| Gearbox | Alpha / PTO: Hytec FC 775 2HC
|
| Propeller | Alpha CPP in Nozzle - 3,300 mm ø - 168 rpm
|
| Steering | AS Tenfjord Mek. Verksted
Becker rudder
|
| Fuel Capacity | Gas oil - 503 cbm
|
| Water Capacity | 60 cbm
Water Maker AFGU 1E 10 ts/24 h
|
| Fuel Consumption | Abt. 6-7 ts/24 hrs whilst towing
Abt. 9-10 ts/24 hrs whilst steaming - speed abt. 11-12 knots
|
| Hold/Fishroom | 1,100 m3 Freezing Hold, lower and upper. Abt. 750 ts frozen products finished goods. Upper hold is packaging room which also can be used as freezing hold -30 degrees C
Another small freezing room is located in front of the factory is used for big size fish which is to big for the block freezers
|
| Freezer Plant | 4 x Vertical Plate Freezers, 52 stations (2 x 26 stations)
Freezing Capacity abt. 30-34 ts/24 hrs. Can be increased
MMC Kulde A/S, new 2006
3 x Horizontal Plate Freezers, 16 stations
Capacity abt. 40-45 ts/24 hrs. (port side)
Jackstone Froster, Grimsby, England
The Freezers were covered with plastic in order to improve the freezing capacity
25 kg boxes
3 x Compressors
Sabroe Freezing Plant SAB 128 h, 2001
The Freezer Tunnels have been removed/not available
Freezing Capacity: 70-79 ts/day
|
| Accommodation | For 27 Persons
11 x 2 Cabins on Trawl Deck level and 5 x 1 Cabins.
Cabins with shower.
Hospital for 2 Persons
The skipper cabin, the chief cabin, the engineer cabin and one more cabin are equipped with own shower, toilet and washbasin.
Other cabins are equipped with washbasin only. Besides that there are shared shower and toilet facilities for other crew members.
The toilet system is EVAC Vacuum toilets and connected to the sewage tank.
|
| Winch Details | All Winches by Hydraulik Brattvaag
2 x Trawl Winches 28 ts each
1 x Trawl Winch 36 ts added in 2000 as 3rd Winch
4 x Sweep Line Winches 12 ts
2 x Gilson Winches 10 ts
1 x Cod-End Winch 6 ts
1 x Out-Haul Winch 2.5 ts
|
| Cargo Winch | 1 x HMF Telescopic Deck Crane 2 ts/9 m
1 x HMF Deck Crane 1.4 ts/7 m
|
| Anchor | 1 x Anchor Winch 8 ts
|
| Other | PROCESSING FACTORY:
Processing Plant: New Factory in 2007 H & G Factory
1 x KM Fish Gutting Machine, electrical
1 x Kronborg Gutting Machine, hydraulic
Conveyors - Washing Bins - Scales
Sorting Machine, 6 tanks, 6 grades
Washing Bin for big fish
Washing Bin for small and middle size fish
Packaging Tables
2 x Receiving Bins with total capacity abt. 21 ts fish ('head off')
1 x Scanvægt, Scale Indicator 8316
1 x Marel M2000 Series
1 x Pols P-15/S-182 Scale
1 x Automatic Strapping Machine, Strapack Corp., Japan
1 x Packaging Machine, Silvaron
.
ELECTRONICS:
1 x Radar FURUNO RDP 082 A ARPA
1 x Radar FURUNO FR 2110
1 x Video Plot System FURUNO GD-2000
1 x Echo Sounder FURUNO FE 881
1 x Echo Sounder FURUNO FCV 161 Colour
1 x Net Sounder FURUNO CN-22
1 x Scanmar FURUNO 4004
1 x Radio Telegraph SKANTI TRP 8250 S
1 x Spare Receiver SKANTI R-6000
3 x VHF's SAILOR 2047
1 x Watch Keeping Receiver SKANTI WR-6000
1 x Inmarsat A
1 x Fax SATURN 3S
1 x PANAFAX UFV-40
1 x Weather Fax FURUNO Fax 108
1 x Direction Finder FURUNO FD 525
2 x Sat. Navigators GP 500 MK II
1 x Loran C FURUNO LC-80
1 x Gyro ANSCHUTZ ST 14
1 x Auto Pilot PILOT STAR
1 x Log BEN GALATEE
1 x Intercom VINGTOR PK-10
3 x Portable Radios SAILOR SP 3110
1 x GMDSS Station
1 x Plotter MACSEA lcn 22
1 x Trawl Eye FURUNO
|
| Survey Class | DNV +1A1, Ice 1C Stern Trawler
The hull is equipped with 20 mm to 30 mm steel plates in ice belt
CLASS STATUS:
Class Status: Classification Certificate, issued 2005-06-21, expires 2010-03-31
International Oil Pollution Prevention Certificate type A, issued 2005-07-01, expires 2010-03-31
Main Class renewal, last date 2005-04-28, due date 2010-03-31
Machinery items, next survey 2009-02-18
Bottom Complete (Last: out of water), last survey: 2007-07-12,next survey 2010-03-31
Propeller Shaft arrangement, oil lubricated (Last: Full scope),last survey 2007-07-12, next survey 2012-11-30
June 2006: Vessel dry docked, bottom cleaned and painted,shaft pulled, Becker Rudder overhauled
|
| General | Vessel built to DNV standard, as fishing vessel according to Danish MEDDELELSE E and to Torremolinos Convention.
|
| SPECIAL | BROKERS SUGGEST TRY
|
| Price | US$ 6,500,000.00
Plus GST and /or Taxes if any.
|
|
