Click on small images to enlarge
|
| Reference Number | 4123
|
| Vessel Type | Trawler
|
| Built By | Santa Domingo Shipyard, Vigo, Spain
|
| Year Built | 1979
|
| LOA | 34.3 m
|
| Length Reg | 31.57 m
|
| Beam | 8.3 m
|
| Draft | 3.7 m
|
| GRT | 353 T
|
| NRT | 138 T
|
| Construction | Steel
|

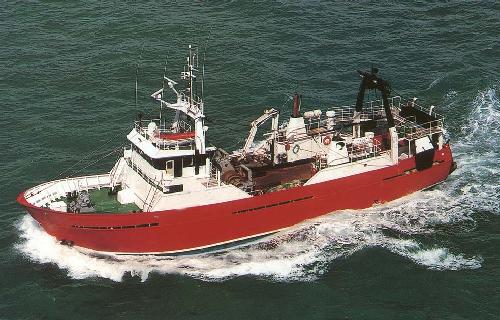

| General Description | DEEP SEA/INSHORE FREEZER STERN TRAWLER. GOOD CONDITION. NEW BLAST FREEZERS. KEEN SELLERS
|
| Engine Details | MAN Burgomaster & Wain 7T 23LY 757kW @ 800rpm
|
| Horsepower | 1,015 hp
|
| Auxiliary Engine | 1 x Cummins KTA19 330 kVA - rebuilt 2009
1 x Detroit 195 kVA - new 2009
|
| Electrical | 2 x 280L alternators 130kVA 380V 197A, 50Hz @ 1500rpm
|
| Gearbox | Eisenwerke Reintjes GmbH Type VAL 1440 2.9:1
|
| Propeller | J W Berg with Khortz nozzle
|
| Steering | Vickers/ARO mRPI-4342 hydraulic rams
|
| Fuel Capacity | Fuel oil 85,800 litres
Lube oil 2,270 litres
|
| Water Capacity | 42,300 litres
|
| Max Speed | 12.5 knots
|
| Hold | 200 m3
|
| Hold Type | Freezer, Chiller
|
| Hold/Fishroom | Side lockers (Blast freezers) x 2 - Bulk 14mt per side - with wooden pound boards
Main Hold - Freezer or cool-room.
1 x main hold conveyor. Coils in deck head.
Main hold can go down to -18 degC
TOTAL 116MT Bulk fish
|
| Freezer Plant | 2 x Blast freezers - 6mt product per day - Upgraded August 2009
Fitted with stainless steel rack system
96 x H&G trays
|
| Accommodation | Crew - Surveyed for 12. Operates with 7
|
| Winch Details | Winch gearbox - Tackle Oalde N-1A-20 800:1320 (step up) 224kW (300hp)
Hydraulic winch pump - Sundstrand 170kW (228hp)
2 x main drums 2300m x 22mm wire a side
2 x Gilson winches 22mm wires on drums
1 x net roller
1 x cod end winch
Trawl Doors - Morgere 4 M2 Super V doors
|
| Gear | 2 x Champion bottom nets
1 x set used codends (2 cod ends and 1 lengthener 100mm inside mesh)
1 x French string trawl (mid water)
1 x wing bottom trawl (squid) 67m ground rope
Trawl Doors - Morgere 4 M2 Super V doors
|
| Radio | SSB Furuno FS1550
VHF - Uniden MC1010
VHF - Uniden hand held
VHF Icom ICM59
|
| Radar | Furuno FR1525
JRC-JMA 3900 colour radar with ARPA targets
|
| G.P.S. | Furuno GP-500 MkII GPS Navigator
|
| Plotter | Sea Plot Pro Version 5
|
| Sounders | Furuno FCV 140
Furuno FCV 10
|
| Auto Pilot | Furuno FAP-50
|
| Net Monitor | Furuno CN24 x 2 net monitor recorders
|
| Other | Gyro compass - Anshutze
Dopple log - Furuno DS-70
Sailor watch keeping receiver
Trimble Galaxy Inmarsat C Software version 4.3
Oki Fax OS-8 fax
Furuno Weatherfax DFAX-208A
Cellphone - Motorola
Iridium phone
Warp Counter Merysetter 890
Computer - Communications C System Galaxy
Computer - Main Bridge
Computer - Engineers
2 x 16 man RFD Solas life rafts
1 x Jotron 406MHZ SARSAT RPIRB Trans 30s MkII
Emergency fire pump
14 various fire extingusihers
Sabre Sigma Positive Pressure BA set, 2 BA cylinders
Firemans outfit complete
12 x life jackets
2 x life rings (one with light)
Rescue boat
Medical kit
2 x 121 hand held EPIRBS
2 x smoke flares
4 x hand held rocket flares
FACTORY
Baader & factory for H&G fish.
Fresh fish conveyor from the fish pound to the main hold hatch
Offal overboard conveyor
|
| Survey Class | NZ Safe Ship Management - Deep Sea Unlimited
|
| Vessels History | A versatile stern trawler. Can be used as an ice boat or freezer boat. Has been used for:-
Orange Roughy
Scampi
Hoki
|
| General | A very comprehensive list of spares, additional to those usually carried on board, is included.
Spares value approx NZ$1,000,000.
**** THIS VESSEL HAS BEEN MAINTAINED TO A VERY HIGH STANDARD AND IS PRESENTED IN VERY GOOD CONDITION CONDITION ****
OWNERS ARE VERY KEEN SELLERS
|
| Price | US$ 1,250,000.00
Plus GST and /or Taxes if any.
|
|
Plus GST and /or Taxes if any. All information is provided in good faith and is accurate to the best of our knowledge AT DATE OF LISTING. Buyers should verify information, by inspection, prior to purchase. We accept no responsibility for errors.
|
