| Reference Number | 4054
|
| Vessel Type | Work Boat, Tug, Trawler, Miscellaneous Vessels
|
| Built By | Kali Boat Building and Repair, Adelaide
|
| Year Built | 1978
|
| LOA | 26 m
|
| Length Reg | 24 m
|
| Beam | 7.4 m
|
| Draft | 4.2 m
|
| GRT | 206 T
|
| NRT | 155 T
|
| Construction | Steel
|

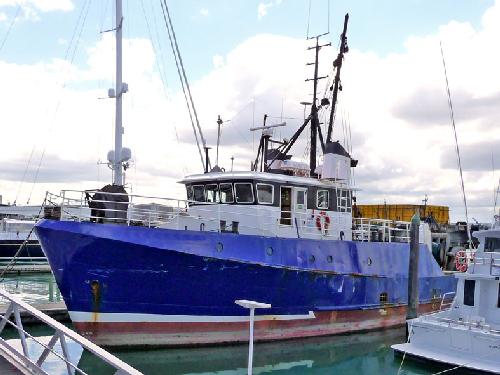

| General Description | SUPPORT VESSEL- TUG- WORK BOAT. EX TRAWLER. CAN BE PUT BACK TRAWLING EASILY
|
| Engine | Caterpillar
|
| Engine Details | D398T V12
|
| Horsepower | 850 hp
|
| Auxiliary Engine | GM 671 Stamford C344a 175kVA KVA alternator
GM 471 Stamford C344B 65 kVA alternator
|
| Electrical | 12, 24, 240 & 400V
|
| Gearbox | Hytek Helical gearbox 5:1
CPP Ulstien 110 A6SC 3:1
|
| Propeller | 3 blade controllable pitch with steering nozzle.
6" shaft?
|
| Steering | 2 x hydraulic rams
|
| Bollard Pull | 9T approx
|
| Fuel Capacity | 49.6 tonnes - 8 tanks
|
| Water Capacity | 10.8 tonnes
|
| Max Speed | 11 knots
|
| Service Speed | 10 knots
|
| Fuel Consumption | 1500 litres per day
|
| Wheel House | Forward
|
| Engine Room | Under wheel house
|
| Hold | 75 T
|
| Hold/Fishroom | 40 tonnes refrigerated ice
Brine tank 11.5 tonnes
Brine tank 12.5 tonnes
|
| Freezer Plant | Refrigeration only
|
| Accommodation | 2 x 2 berth cabins
4 berth cabin
Masters cabin
|
| Galley | electric stove 4 hobs & oven
Refrigerator
Microwave
Chest freezer
Range hood extractor
|
| Facilities | Births - single Captains cabin
2 X 2 berth cabins
1 X 4 berth cabin
Horse shoe shaped mess table with bench seating
Stereo
DVD
TV
Toilet on main deck with washing machine & drier
Toilet, basin & shower
|
| Winch Details | Twin Brattvaag Semi Auto
MB8 motors and G18 450 RPM pumps
2,000m x 18mm wire
|
| Net Drum | Hydraulic
|
| Gear | Slewing winch, topping lift, bull winch,
|
| Cargo Winch | Cargo derrick 2.5 tonnes
|
| Anchor | Hydraulic winch
Stockless anchors
20mm stud link chain
20mm wire
|
| Radio | VHF - Icom M120
VHF - Icom M45
SSB - Codan 4000 tuner 4201
|
| Radar | Furuno 8100D GA
|
| G.P.S. | Furuno GP 500 Mk2
|
| Plotter | Sea Plot
|
| Sounders | Furuno CV140 Colour 10kW
JRC JF250
|
| Auto Pilot | Robertson APC 6
|
| Net Monitor | Furuno
|
| Other | Gyro compass Tokyo Keiki GM21
Furuno water temp
EPIRB
8 man liferaft
|
| Survey Class | March 2007 shaft drawn
Operation Type - SUPPORT VESSEL- TUG- WORK BOAT and has a CARGO hold certified to carry 20 ton
OPERATING LIMITS -UNLIMITED AREA
Fishing survey can be reinstated if required.
|
| General | March 2007 vessel sand blasted and painted
|
| Price | NZ$ 700,000.00
Plus GST and /or Taxes if any.
|
|
