| Reference Number | 3924
|
| Vessel Type | Passenger Charter, Passenger
|
| Designed By | Don Brooke
|
| Built By | Export Yachts, Jorgenson & Dorman, Auckland, New Zealand
|
| Year Built | 1994
|
| LOA | 24.95 m
|
| Length Reg | 22.3 m
|
| Beam | 5.85 m
|
| Draft | 2.2 m
|
| GRT | 116 T
|
| NRT | 87 T
|
| Construction | Steel, Aluminium
|
| Construction Details | Hull & deck material steel....Aluminium topsides
|

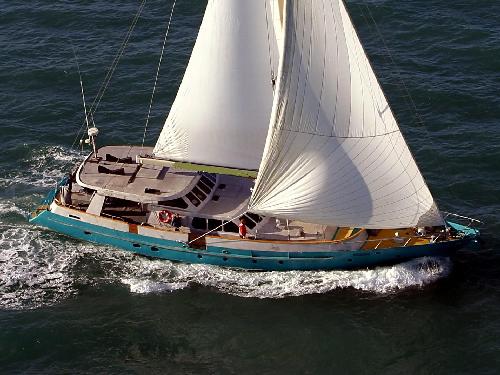

| General Description | CUTTER RIG, PILOTHOUSE CAVALIER 81 MOTOR SAILER
APPROX US$700,000 ON 15 DECEMBER 2008
|
| Engine Details | GM 6v92 TTA rebuilt dec 06
|
| Horsepower | 320 hp
|
| Auxiliary Engine | Perkins 4203,27kva
|
| Electrical | 27kVA
Electrical system 60 amp & 80 amp generator,batteries 2@24,3@12,12,24,230 & 415 volt system.rectifier230 to 24 volt..20 amp,new battery banks t/out,bilge alarm system
|
| Gearbox | 3:1
|
| Propeller | 42"
|
| Shaft Size | 3.5 inches
|
| Steering | Single station hydraulic
|
| Bow Thruster | Yes
|
| Fuel Capacity | fuel 8 tons in 2 tanks
oil 300 litres
|
| Water Capacity | 6 tonnes
Reverse osmosis water maker 500 lpd
Holding tanks for sewage & grey water......230 & 24 volt water pumps.seawater pump can be used on top toilet
|
| Max Speed | 11.5 knots
|
| Service Speed | 9.5 knots
|
| Accommodation | Accommodation berths 11 passengers 4 crew,
4 berths in 2 cabins forward, 1 double, 1 3 berth,
3 x2 berth aft
|
| Galley | multifunction ss stove,
microwave/convection oven
fridge
2 x bar fridge
freezer
double sink
water filter
crockery
cutlery
cookware
|
| Facilities | 5 toilets,
4 showers.
2 x Hot water gas califont
Washing Machine & Dryer
Stereo System,
TV
Air Conditioning Reverse Cycle
|
| Cargo Winch | Hiabb 2 Ton
|
| Anchor | 2 x 110kg plough
|
| Radio | VHF
SSB
|
| Radar | Yes
|
| G.P.S. | Yes
|
| Plotter | Yes
|
| Sounders | Yes
|
| Auto Pilot | Yes
|
| Other | SAILS
87sq metre yankee
94 sq metre main
130 genoa
MAST
carbon fibre in mast furler, ram boom outhaul.
WINCHES
hydraulic sheet winch,wheelhouse controlled for shorthanded sailing,
2 x hand winches
4 Burner Ss Bbq.
Safety equipment,in accordance with survey
8 man liferaft
|
| Survey Class | NZ Safe Ship Management
Passenger inshore limits; Nelson, Mmarlborough, Northland, Barrier, Auckland, Bay of Plenty.
Enclosed water limits: Wellington.
Non passenger restricted coastal limits;restricted to within 30nm of the coast of New Zealand
Max 15 berthed persons o/night, 40 day pass
Easy upgrade to higher survey.,
Survey not current
|
| General | A GO ANY WHERE EXPEDITION VESSEL WITH MULTITUDE OF USES. IMPECCABLE PEDIGREE. POWERFUL RIGGING. STRONGLY BUILT FOR THE SOUTHERN OCEAN.
CAN BE SAILED BY 2 PEOPLE,ALL SAIL CONTROLLED HYDRAULICALLY FROM AFT AREA.
Trade Considered
APPROX US$700,000 ON 15 DECEMBER 2008
|
| SPECIAL | NEGOTIABLE
|
| Price | NZ$ 1,300,000.00
Plus GST and /or Taxes if any.
|
|
Plus GST and /or Taxes if any. All information is provided in good faith and is accurate to the best of our knowledge AT DATE OF LISTING. Buyers should verify information, by inspection, prior to purchase. We accept no responsibility for errors.
|
