| Reference Number | 3853
|
| Vessel Type | Trawler
|
| Built By | Kalmar Fartygsrep., Sweden
|
| Year Built | 1986
|
| LOA | 47 m
|
| Beam | 10.5 m
|
| Draft | 5.15 m
|

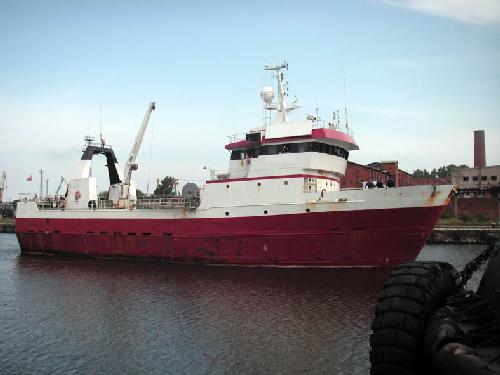

| General Description | FREEZER STERN TRAWLER
|
| Engine Details | Deutz 1508 HP
|
| Auxiliary Engine | 2 x Volvo Penta 350 hk;
1 x Volvo Penta. 180 hk
|
| Electrical | Stamford 450 kw akselgen
|
| Propeller | J.W. Berg 160 nozzle / 2900 mm propeller diameter
|
| Fuel Capacity | 340 m3
|
| Water Capacity | 20 m3
Fresh water prod.: 6 ton/24 hrs
|
| Hold | 440 m3
|
| Freezer Plant | 2 Stahl-Kulde screw compressors;
3 x vert. plate freezers 20 ton/24 hrs;
|
| Accommodation | 14 persons in 6 single and 6 double cabins.
|
| Winch Details | Norwinch, Bergen.
2 x trawl winches 15 ton. Winch motors overhauled 1999
4 x sweep winches 6 ton.
2 x Gilson winches 6 ton.
1 x emptying winch 3 ton.
1 x outhauling winch 3 ton.
1 x Cod end winch 10 ton.
Smith Datatrawl automatic trawl winch control system.
|
| Cargo Winch | 1 x deck crane 3,4 ton /10 m, new 1998
|
| Other | Racal-Decca radar with Arpa 5 cm, 1998.
Furuno 3 cm radar
JRC satellitte navigator
Max sea (2004)
Skipper gyro, new 1998.
Robertson autopilot, new 1998.
Suzuki ES 5300 echosounder.
Koden CVS 8816 echosounder.
Furuno radio station (2004).
2 x Sailor 2047 VHF radio.
JRC Loran C.
Avanger Loran C.
Scanmar 4004 trawl control.
Furuno Trawl eye, Net recorder
Iridium
Inmarsat C
GSM telephone.
Mini M satellitte.
Satellitte TV.
|
| Survey Class | DnV, +1A1 Deep Sea Fishing Ice 1C Stern trawler
|
| General | The vessel is sandblasted and galvanized.
There is a 25 mm icebelt (2,5 m width) all around the vessel.
|
| Price | 1,900,000 EUR
Plus GST and /or Taxes if any.
|
|
Plus GST and /or Taxes if any. All information is provided in good faith and is accurate to the best of our knowledge AT DATE OF LISTING. Buyers should verify information, by inspection, prior to purchase. We accept no responsibility for errors.
|
