| Reference Number | 3809
|
| Vessel Type | Trawler
|
| Year Built | 2001
|
| LOA | 40 m
|
| Beam | 8.7 m
|
| Draft | 3.6 m
|
| GRT | 441 T
|
| NRT | 132 T
|
| Construction | Steel
|

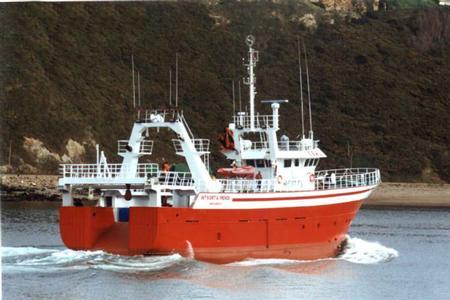

| General Description | FREEZER STERN TRAWLER
|
| General | Date of Built :2001
Shipyard :Armon Shipyard
Country :Spain
Classification :Bureau Veritas
Accommodation :14 men
Hold capacity :231.0 m3
Holds details :Hold 1: 96 m3 (-25 dc) + Hold 2: 135 m3 (O dc)
2 Ice Machines
DIMENSIONS:
Length over all :40.0
Length between p.p. :33.7
Beam :8.7
Draft :3.618
Depth to upper deck :6.1
BUNKERS:
G.O. Cap. :141.4 m3
L.O. Cap. :8.6 m3
F.W. Cap. :9.7 m3
TONNAGE:
GT :441.0
NT :132.0
FREEZING SYSTEM:
Freezing details :2 Tunnels INFA of 5,74 m3 each and with a freezing capacity of 3 tons/day each (-40 dc)
Freezing system :Freon 22. Direct Extension
2 Compressors Bitzer 6F-2 of 15 kg/cm2 each
2 Pumps Azcue 1,5 kg/cm2 of 22 m3/h each
2 Condensers IMFA of 29 kW each
PROPULSION SYSTEM:
Main engine :Yanmar
Type :8N21A-D
BHP :1400.0
RPM :800.0
Reduction gear :Reintjes type LAF 862. Reduction 4,038:1
Propeller :Variable Pitch Propeller running into nozzle. 4 blades
Side Propeller :Bow thruster of 125 hp
AUXILLIARY ENGINES/GENERATORS:
1 Volvo TAMD 163 A of 500 hp
1 Volvo TAMD 74 of 200 hp
1 Generator Stamford of 180 kW
1 Genenator LeroySomer of 180 kW
DECK EQUIPMENT:
2 Hydraulic Split Trawling Winches Hidraúlica Irun
4 Net Drums Hidraúlica Irun.
2 Deck Cranes :
GERRA 9090 of 950 kgs
GERRA 11090 DE of 1250 kgs
2 Sweep Winches of 5 tons
1 Windlass Rouco
NAVAIDS & ELECTRONICS:
1 Sounder SIMRAD EC-210 .
1 Sounder SIMRAD ES60
1 Navtex ICS NAV-5
1 Facsimil FURUNO FAX-207
1 Facsimil FURUNO FS-1550
1 Facsimil SKANTI TRP-1250
1 RTF VHF (+LSD) SKANTI VHF 1000 DSC
1 RTF VHF (+LDS) SKANTI VHF 1000 DSC
1 RTF VHF PORT.SOLAS NAVICO AXIS 250 GMDSS
1 RTF VHF PORT. SOLAS NAVICO AXIS 30
1 ETB-C THRANE & THRANE TT-3020C
1 ETB-C THRANE & THRANE TT-3020C
1 RADAR FURUNO FR-2125
1 RADAR FURUNO M-1832
1 SART SERPE-IESM KANNARD RESCUER
1 ETB-C BLUE BOX THRANE & THRANE TT-3022 (D)
1 GPS SIMRAD SHIPMATE GN-30 (DGPS)
1 GPS MLR ELECTRONIC CM-015
1 GPS SERCEL NR51
|
| Price | 2,500,000 EUR
Plus GST and /or Taxes if any.
|
|
Plus GST and /or Taxes if any. All information is provided in good faith and is accurate to the best of our knowledge AT DATE OF LISTING. Buyers should verify information, by inspection, prior to purchase. We accept no responsibility for errors.
|
