Maritime International

Reference Number

3758

Vessel Type

Research, Miscellaneous Vessels

Built By

Norderwerft GmbH&Co Bau

Year Built

1966

LOA

80.63 m

Beam

12.6 m

Draft

3.6 m

Construction Details

Steel Hull
Aluminium superstructure

General Description

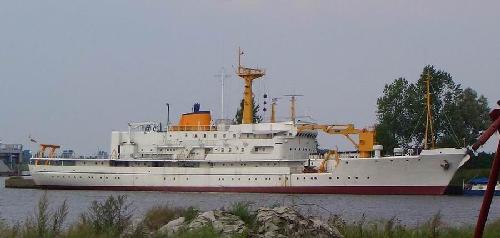

FORMER RESEARCH VESSEL EX GERMAN FEDERAL NAVY, VERY GOOD SUITABLE FOR REFIT AS A MEGA AND EXPLORER YACHT.

Engine Details

4 x MWM

Horsepower

625 kW

Fuel Capacity

250,000 litres

Water Capacity

7,500 litres

General

MACHINERY
Main engines Diesel electric propulsion 4 x MWM Type TB12RS 18/22-21 V12 each 625kw at 1.130 rpm

Auxiliary 1 auxiliary diesel engine KHD Type F12 L 714 125kw 1.500 rpm with emergency generator 90kw

Propulsion devices 1 Saped rudder, electro-hydraulic steering gear AEG

1 active Rudder Pleuger - thrust 1,5 tonnes

1 Lateral - Jet - Rudder Pleuger thrust 1,5 tonnes

Speed Approx 12,5 knots

Range Appr. 9,400 nm

Generators AEG each 460kw, effecting on 1 propeller-drive engine

AEG - Telefunken shaft power 1.020 kw, 250 rpm, 1 fixed pitch propeller 5 wings

ELECTRICAL SYSTEM
Scientific: DC ship supply system with static inverters AEG for vessel operation and scientific purposes:
380V DS - 50 HZ - 30 KVA
440V DS - 60 HZ - 30 KVA
440/380 V DS - 60/50 Hz - 15 KVA (Port)
440V DS - 400 HZ - 15 KVA
115 V DS - 400 HZ
220 V DS - 50 HZ - 20 KVA
115 V WS - 60 HZ - 10 KVA

BUNKER CAPACITY
Diesel oil Approx 250,000 litres/66050 gal

Kerosene for Helicopteter Approx 30,000 litres /19815 gal

Fresh water 7.500 litres / 1,982 gal

DECK EQUIPMENT
Anchors 2 Mooring anchors 1.740 kg, chain length 470m, diameter 38mm K2 1 stern anchor

Winches 1 series winch Baensch rope length 6.000m

1 cable winch Baensch

1 deep sea winch Baensch

1 storage winch Baensch for deep sea, rope length 8.000m

1 wire winch with capstan head Baensch wir length 1.000m

1 mooring winch Baensch

1 storage winch Baensch rope length 1.000m

Echo sounder 1 Atlas 601 A deep sea

1 ELAC Caster 1000

Research equipment Main laboratory and register room with shelves 19"with working places without technical equipment, Meterological station

Others Fresh water production device

Quartz clock system

MISCELLANEOUS
Galley Pantry and laundry

3 refrigerating hold for meat, fish, vegetables, milk and cheese and beverages

Others Main laboratory, meteorology laboratory

2 mechanical workshop, partly equipped with lathe, upright drill machine, work bench

80,63 meter long, former research vessel of the German Federal Navy, very good suitable for the Refit into a Mega and Explorer Yacht. The vessel is characterised by a diesel electric drive with four MWM main engines and an electric motor on the propeller shaft. The main engines are totally enclosed and especially mounted. Thus the vessel drives almost noiseless and free of vibration.

The main engines are overhauled completely. The vessel is provided with a helicopter hangar and a landing strip. Two further helicopter landing strips are planned plus hanger. Skylounch, a mega sun deck a.m.m. Plans are already available. Further technical details which make the vessel suitable as Megayachtt: stabilizers, active rudder, two cranes up to 5 to, extremely durable hull (Finland ice class) and a range of approx. 12.000 sm (Diesel tank capacity: 250 to)

PRICE IDEA OBTAINABLE ON APPLICATION

SPECIAL

BROKERS SUGGEST TRY

Price

2,200,000 EUR Plus GST and /or Taxes if any.

Plus GST and /or Taxes if any. All information is provided in good faith and is accurate to the best of our knowledge AT DATE OF LISTING. Buyers should verify information, by inspection, prior to purchase. We accept no responsibility for errors.
