Reference Number

3627

Vessel Type

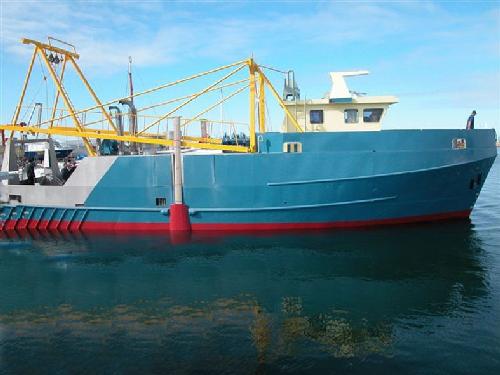

Trawler

Built By

EMS Holdings, Western Australia

Year Built

1986

LOA

24 m

Beam

6.22 m

Draft

1.85 m

NRT

53 T

Construction

Steel

Construction Details

Single chine, displacement hull. Raked stem & transom stern - 1020mm freeboard
Aluminium bulwarks on foredeck
Stainless steel bulwarks on aft deck 950mm high

Engine Details

Caterpillar 3508 turbo/aftercooled installed 2000
41 kW @ 1300rpm

Auxiliary Engine

Cummins 6CT A83.6 reconditioned January 2002

Electrical

Onan 168kVA

Gearbox

ZF RSD471 3.98:1 installed 2000

Shaft Size

150 mm

Steering

single station
2 x double acting hydraulic rams linked to one tiller

Fuel Capacity

35,000 litres in 11 tanks

Water Capacity

9,000 litres in 2 tanks

Service Speed

10 knots

Engine Room

CO2 system

Hold/Fishroom

Freezer hold 35 tonnes
Snap freezer 220 cartons

Accommodation

2 x 2 berth cabins
1 x 4 berth cabin

Galley

4 burnder gas stove/oven
Microwave
Urn
2 x Stainless steel upright freezer
Stainless steel upright fridge
Range hood

Facilities

TV
Air conditioned
Messroom seating for 6
Toilet
Shower

Winch Details

2 x trawl winches
2 x cod end winches
1 x trynet winch
Various blocks
2 x hydraulic trawl board single lift winches

Gear

Haldane prawn grader
Various tables
Stabilisers

Anchor

double gypsy hydraulic with 2 warping drums
2 x 230kg Stockless

Radio

HF - Codan 85285
VHF - Sailor RT144C

Radar

Furuno FR810D

G.P.S.

Furuno GP30

Plotter

Furuno GD180

Sounders

Furuno FE881 MKII
Furuno FCV381
Furuno SN1213-0188

Auto Pilot

Tokimec

Other

Compass - Tokyo Keiki
Computer - C-Plot
Water Temp - Furuno T2000
VMS - Trimble
Phillips audion system
Clearview screen
Fax
Sat phone
8 man liferaft
EPIRB

Survey Class

Australian USL 3B
Tailshaft drawn 2006
Stability book

Vessels History

Vessel has had major refurbishment completed since 2000.

Price

US$ 790,000.00 Plus GST and /or Taxes if any.
