Click on small images to enlarge
|
| Reference Number | 3551
|
| Vessel Type | Trawler
|
| Built By | Ocean Shipyards, Fremantle, Australia
|
| Year Built | 1988
|
| LOA | 24.86 m
|
| Beam | 6.74 m
|
| Draft | 3.2 m
|
| GRT | 133 T
|
| NRT | 39 T
|
| Construction | Steel
|

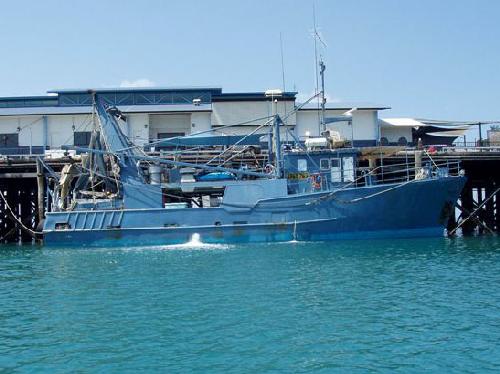

| General Description | DOUBLE RIGGED, SINGLE SCREW REFRIGERATED PRAWN TRAWLER. 2 SISTER SHIPS
|
| Engine Details | Caterpillar 3508 375kW at 1800rpm
Keel cooled
|
| Horsepower | 375 kW
|
| Auxiliary Engine | 2 x Caterpillar 3304B DI 125hp keel cooled
|
| Electrical | 2 x 100kVA alternators
|
| Gearbox | ZF ZFW4700 3.981:1
|
| Propeller | Propellor in nozzle
|
| Shaft Size | 125 mm
|
| Steering | Tokyo Keiki sterering unit un wheelhouse
twin 35mm hydralic rams
Hydraulic steering pump off main engine
|
| Fuel Capacity | 54,560 litres in 8 tanks
1,070 lubricating oil tank
1070 litre hydraulic oil tank
|
| Water Capacity | 9.420 litres in 2 tanks
|
| Max Speed | 10.5 knots
|
| Fuel Consumption | 2,100 litres per day steaming & trawling
|
| Engine Room | Fixed smothering system
|
| Hold/Fishroom | Freezer hold capacity 30 tonnes - Forced draft unit with 3 fans
Snap Freezer capacity 2.5 tonnes - fan units
Brine tank capacity 3,600 tonnes
|
| Freezer Plant | Grasso RC429 compressor
Grasso RC219 compressor
R@@ refrigerant
|
| Accommodation | 7 crew including skipper
Skippers cabin in wheelhouse, double berth.
3 x twin berth cabins
|
| Galley | fully equiped galley/saloon
Domestic cool room
|
| Facilities | Shower
toilet
Air conditioning
|
| Winch Details | Main -Hagglund hydraulic Port & Starboard trawl winches. 5 tonnes capacity
Cod end - port & stardboard hydraulic 3 tonnes capacity
Working capstans - electric
Try winch - hydraulic
|
| Gear | Tiger prawn & Banana prawn nets
2 x sets No 9 bison boards
Main trawl wire 1850 x 16mm
Try winch wire 300m x 12mm
|
| Anchor | 2 x 300kg stockless
2 x 165m 22mm chain
Hydraulic windlass, twin warping wheel and twin gypsies
|
| Radio | SSB - Codan 852S
SSB - Sailor RE2100
VHF - Sailor RT2048
VHF - Sailor Compact RT2048 x 2
Scrambler - Sailor CRY2001
Antenna rotator N2020
|
| Radar | Furuno FR7112 72 miles
|
| G.P.S. | Furuno GDPWAAS GP32
|
| Plotter | Furuno GD188
|
| Sounders | Furuno FE881 Mk2 paper
Furuno FCV121ET colour video
|
| Auto Pilot | Tokyo Keiki PR-1000
Furuno heading sensor PG1000
|
| Other | Tokyo Keiki rudder indicator
Tokyo Keiki compass
EPIRB 30S 406mHz
PC Tower computer
NEC flat screen
PC Computer with 2 Diamond View flat screens
Furuno sea temperature T-2000
Fax - Panasonic KX-F2500
Trimble Galaxy Inmarsat C TNL7010
Moibilsat MT101A modem
RFD 8 person liferaft
|
| Survey Class | Australia 3B 200 miles offshore
|
| General | Savage 4m alluminium dinghy
LOCATION AUSTRALIA
VESSEL REPORTED TO BE IN VERY GOOD CONDITION
TWO SISTER SHIPS AVAILABLE
|
| SPECIAL | PRICE REDUCED
|
| Price | US$ 685,000.00
Plus GST and /or Taxes if any.
|
|
Plus GST and /or Taxes if any. All information is provided in good faith and is accurate to the best of our knowledge AT DATE OF LISTING. Buyers should verify information, by inspection, prior to purchase. We accept no responsibility for errors.
|
